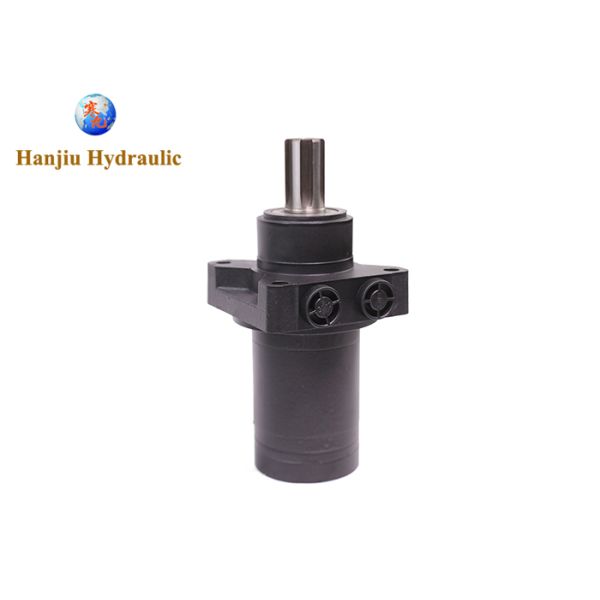

Turf equipment Light Duty Gerotor Motor, Wheel Motor 375 ml/r, SAE 6B
Quick review:
Hanjiu BMJ-375 apply to Turf equipment
Also BMJ series with more mounting and shaft apply to Scissors lifts, Boom lifts, mowers, Greens mowers, Sand trap rakes, Railroad maintenance equipment, Industrial sweepers and floor polishers, Skid steer attachments and many more.
Specification:
- Displacement: 375cc
- Flange :wheel Ø60.3*7mm
- Shaft: key 25.4 mm SAE 6B
- Ports: G 1/2
- Drain port: G 1/4
Specification:
| Type | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 |
| Displacement (cm3/rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 |
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 |
| Max. torque (N• m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 |
| Max.pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75
|
Dimentions:
More hydraulic motors available:
About Hanjiu:
Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfoss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
