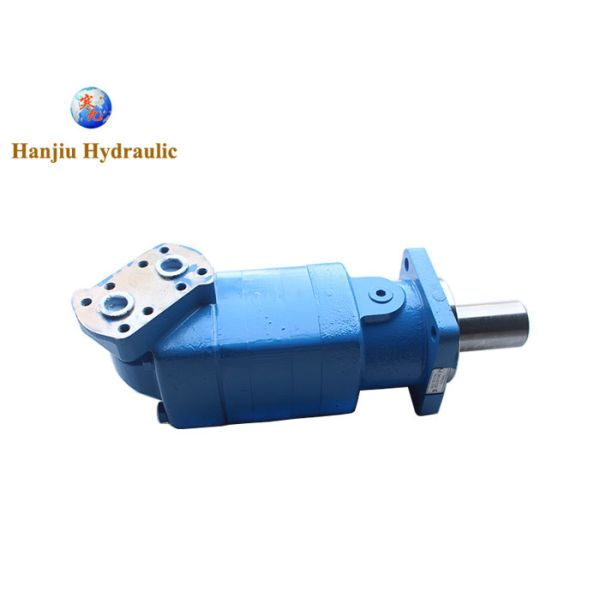

665cc Eaton Geroler Motor Marine Winch Drive 10000 Series

Name: 665cc Eaton Geroler Motor Marine Winch Drive 10000 Series
Brand: HANJIU
Price: 350 USD

Wholesale 665cc Eaton Geroler Motor Marine Winch Drive 10000 Series from china suppliers

Brand Name : HANJIU

Model Number : 119-1042

Certification : ISO 9001:2015

Place of Origin : CHINA

MOQ : 100 Sets

Price : 350

Payment Terms : L/C, T/T, Western Union, Western Union

Supply Ability : 300000 sets per year

Delivery Time : 35 - 45 work days

Packaging Details : Carton, Box, Pallets

Item : disc valve motors

Model : 119-1042

Displacement : 665.3 CM3/R [40.60 IN3/R]

Flange : 127.0 [5.00] PILOT DIA.

Shaft : 57.15 [2.250] DIA. STRAIGHT SHAFT WITH .500-20 UNF-2B THREAD IN END

Port : 1.3125-12 UN-2B SAE O-RING STAGGERED PORTS

Contact Now

Hydraulic Geroler Disc Valve Char Lynn Eaton Motor 119-1042-003 10000 Series 665cc

Marine Winch Drive Motor

OVERVIEW
Lowest pressure drop motor in the industry

This is an Aftermarket CHAR-LYNN

119-1042-003

119-1041-003

119-1043-003

119-1040-003

SPECIFICATIONS

Series	10000 - Standard type
Displacement	665 cm³/r
Mounting Type	4-Bolt Flange - 5 in Pilot
Shaft Type	Straight
Maximum Operating Temperature	180 °F
Output Shaft Size	2-1/4 in Straight - Straight Key
Overall Height	5.79 in
Overall Length	17.74 in
Overall Width	5.91 in
Seal Type	Standard
Operation Mode	Continuous Rating - Motor May Be Run Continuously At These Ratings. / Intermittent Operation - 10 Percent Of Every Minute / Peak Operation - 1 Percent Of Every Minute
Drain Connection Size	1 1/4 inch Split Flange

PARAMETERS

Displacement	cc/rev	345	480	665	940
Max. Speed*	rpm	501	354	254	179
Flow	lpm	170	170	170	170
Torque*	Nm	1040	1475	2085	2700
Press. ∆bar**	bar	205	205	205	190

665cc Eaton Geroler Motor Marine Winch Drive 10000 Series

Eaton similar type motors are available we belows:

J (129-) HANJIU BMM
H (101-) HANJIU BMPH
S (103-) HANJIU BMRS
T (158-) HANJIU BMRS
W (162-) HAJJIU BMRW
2000 (104-, 105-, 106-, 193-) HANJIU BMK2
4000 (109-, 110-, 111-) HANJIU BMK4
6000 (112-, 113-, 114-) HANJIU BMK6
10000 (119-) HANJIU BMK10

665cc Eaton Geroler Motor Marine Winch Drive 10000 Series

Product Tags:

665cc Eaton Geroler Motor

Marine Winch Drive Eaton Geroler Motor

665cc 10000 Series Char Lynn Motor
