7 Spool 16 Gpm Backhoe Hydraulic Control Valve With 2 Joystick

  • 1
  • 2
  • 3

Brand Name : HANJIU

Model Number : DCV80/7

Certification : CE

Place of Origin : CHINA

MOQ : 100 Sets

Price : 300 usd +

Payment Terms : L/C, T/T, Western Union, Western Union

Supply Ability : 300000 sets per year

Delivery Time : 15 - 45 work days

Packaging Details : Carton, Box, Pallets

Item : Direction Control Valve

Model : DCV80

Apply to : Backhoe

Spool : 7

Function : Joystick

Joystick : x2

Contact Now

7 Spool 16 GPM Backhoe Hydraulic Control Valve with 2 Joystick
7 SPOOL BACKHOE CONTROL VALVE
New hydraulic control valve. Ideal for controlling Backhoes and other mobile equipment. Joystick spools seperated by two individual spools. The joystick spools can be operated independently or simultaneously depending on handle movement. 2250 PSI work port relief on 2nd spool.
SPECIFICATIONS:
Open Center
Spools Seven
Flow 16 GPM max.
Pressure 4600 PSI max.
Relief Valve Adj. 1450-2900 PSI set @ 2175 PSI
In/Out Ports SAE 10
Work Ports SAE 8
Mount Base four bolt on 11-1/4" x 4-1/4" centers
Size 12-1/8" x 10-1/2" x 4-3/4"
Shpg. 60 lbs.

Norminal Flow80L/min
Max.flow80L/min
Max Pressure315bar
Control Typemanaual or customized
Pneumatic control pressure5~10bar
Oil port sizeas customized
Spool stroke±5mm

Spool Details:
Spool 1 Double Acting Cylinder Spring Centered
Spool 2 Double Acting Cylinder Spring Centered
Spool 3 Double Acting Cylinder Spring Centered
Spool 4 Double Acting Cylinder Spring Centered
Spool 5 Double Acting Cylinder Spring Centered
Spool 6 Double Acting Cylinder Spring Centered
Spool 7 Double Acting Cylinder Spring Centered

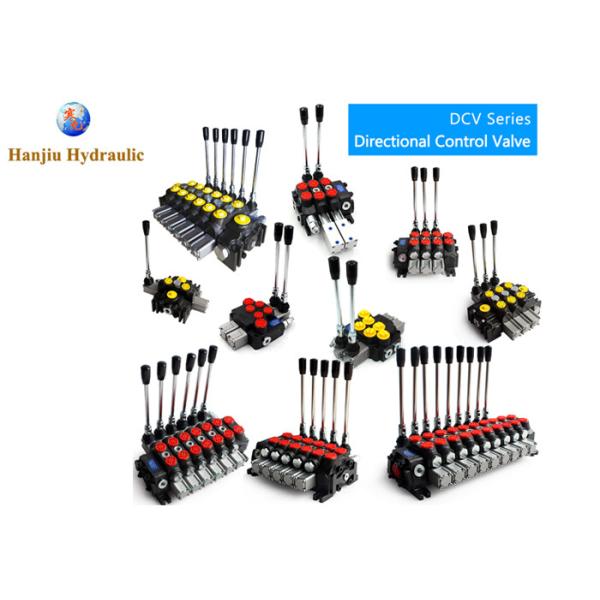

Hanjiu Technology produces various hydraulic valves to adapt to various machinery and applications. We provide services for OEM projects and after-sales markets. More types of hydraulic directional control valves are as follows.


7 Spool 16 Gpm Backhoe Hydraulic Control Valve With 2 Joystick7 Spool 16 Gpm Backhoe Hydraulic Control Valve With 2 Joystick7 Spool 16 Gpm Backhoe Hydraulic Control Valve With 2 Joystick

7 Spool 16 Gpm Backhoe Hydraulic Control Valve With 2 Joystick7 Spool 16 Gpm Backhoe Hydraulic Control Valve With 2 Joystick7 Spool 16 Gpm Backhoe Hydraulic Control Valve With 2 Joystick7 Spool 16 Gpm Backhoe Hydraulic Control Valve With 2 Joystick

7 Spool 16 Gpm Backhoe Hydraulic Control Valve With 2 Joystick



Contact us today to discuss your questions or application needs with our team.
